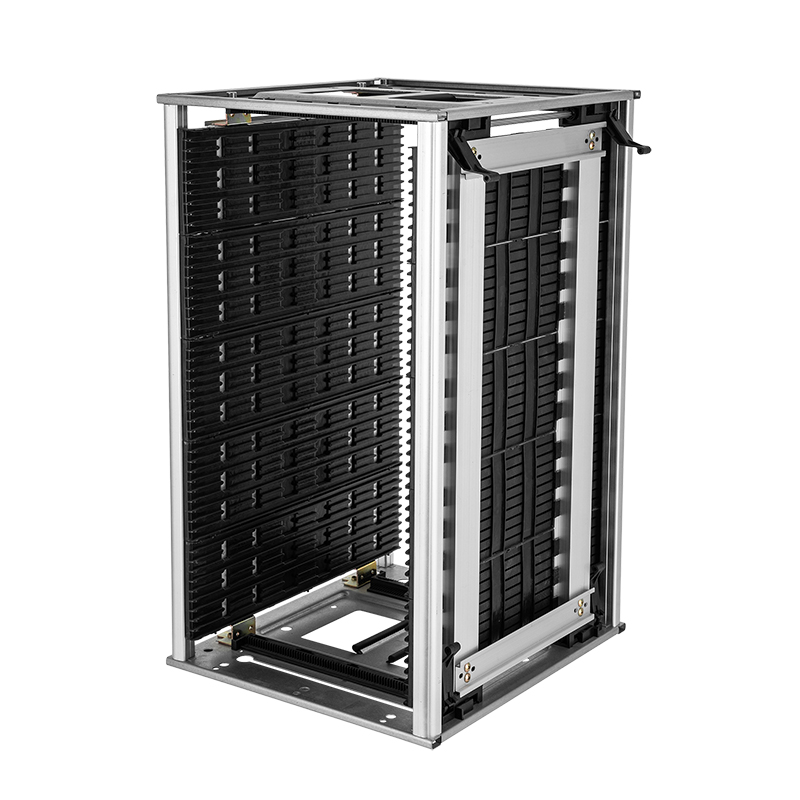

ESD Magazine Rack 【355(L)*320(W)*H mm】

Product Introduction

In the fields of electronic manufacturing, precision instrument production and other fields that are sensitive to static electricity, anti-static collection racks are indispensable professional storage tools. With their excellent performance, they ensure the efficiency and safety of the production process. ​
Highly efficient anti-static, protecting product safety: using high-quality materials such as anti-static engineering plastics and metals coated with anti-static coatings, the surface resistance is precisely controlled at 10⁶ - 10¹¹Ω, which can instantly direct static electricity to the ground, and can function stably even in complex environments, providing long-lasting and reliable static protection for electronic components, precision instruments, etc., to avoid product damage or performance degradation caused by static electricity. The metal steel frame with rigorous mechanical design has a stable and reliable structure, and large-size products can bear up to hundreds of kilograms. Whether it is the classified storage of small electronic components or the temporary storage of heavy industrial parts, it can easily handle the task and is widely used in electronic manufacturing, mechanical processing and other industries.

Technical Specification

Product name		Anti-static collection rack

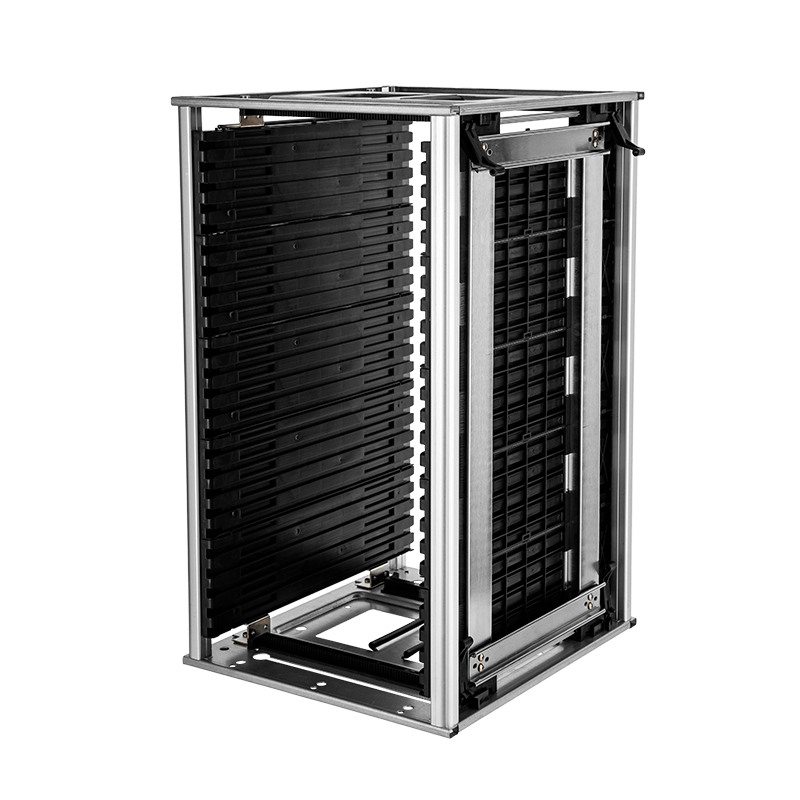

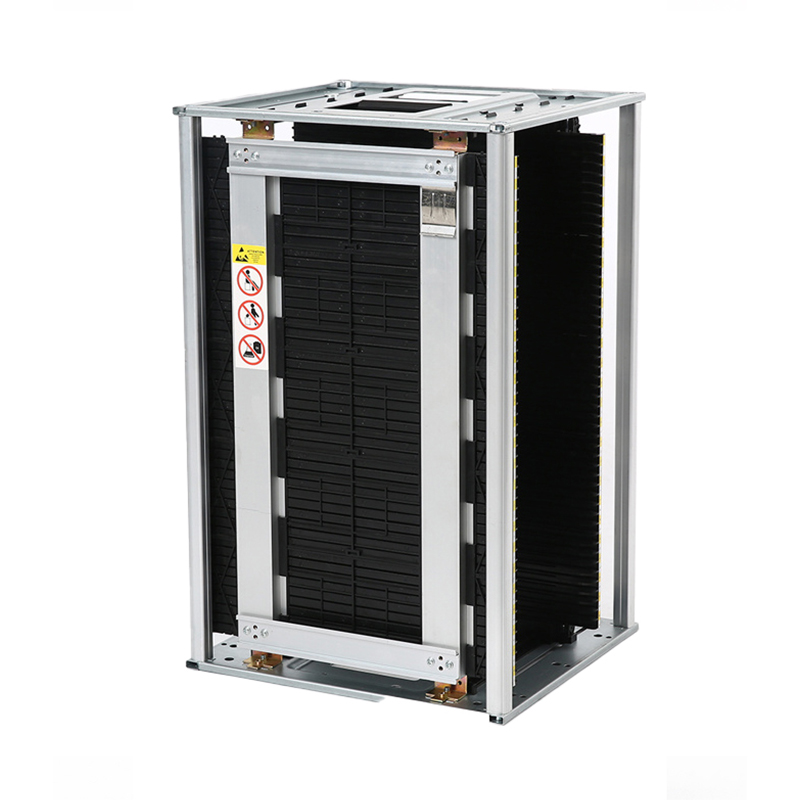

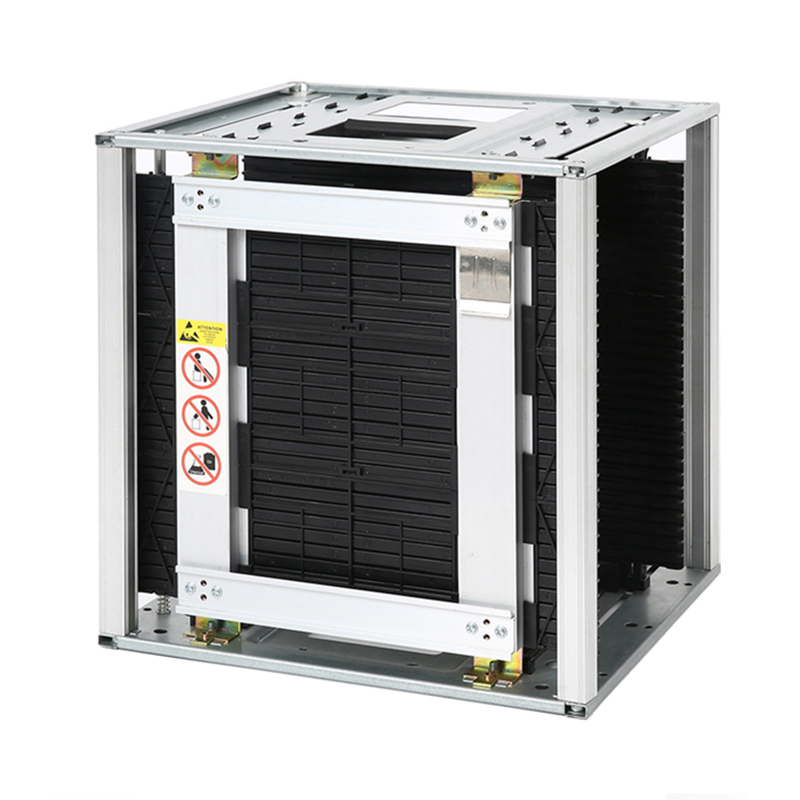

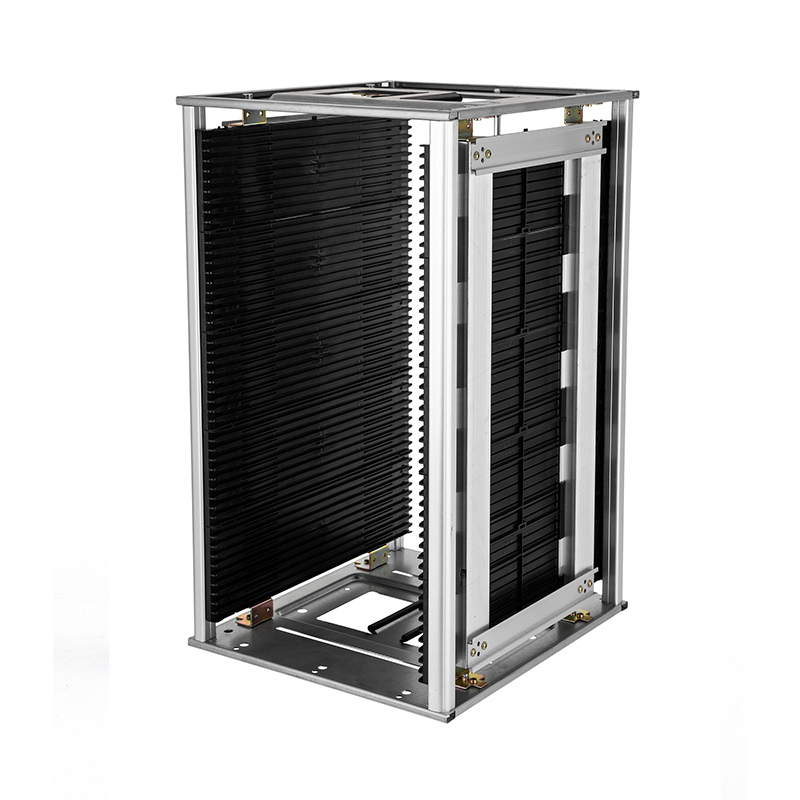

Product model		3W-9805301B1		3W-9805301B1-1		3W-9805301B1-2		3W-9805301B1-3		3W-9805301B1-4
Adjustment method		Wrench adjustment		Screw adjustment		Wrench adjustment
Specification parameters	●External dimensions:	355*320*563mm		355*320*563mm		355*320*563mm		355*320*363mm		355*320*563mm
	●Base position:	A: 34mm; B: 34mm		A: 34mm; B: 34mm		A: 31mm; B: 34mm		A: 34mm; B: 34mm		A: 34mm; B: 34mm.
	●Adjustable width:	40-250mm		40-250mm		40-250mm		40-250mm		40-250mm
	●Groove depth:	3.5mm		3.5mm		3.5mm		3.5mm		3.5mm
	●Slot width:	5mm		5mm		5mm		5mm		7mm
	●Pitch:	10mm		10mm		10mm		10mm		20 mm
	●Number of slots:	50		50		50		30		25
	●Weight:	5.56Kg		5.33Kg				4.52Kg		5.6Kg
	●Carrier:	20kg		20kg		20kg		12kg		20kg
Product description		◆Baffle mechanism: spring lever
		◆Static index: 10e4-10e8
		◆Side board structure: 5 pieces of puzzle						◆Side board structure: 3 pieces of puzzle		◆Side board structure: 5 pieces of puzzle
		◆Bottom plate material: galvanized bottom plate
Temperature resistance options		口100°C 口120°C 口150°C (can enter 120°C oven)
Optional accessories		□Metal folder
		stacking screw
		□Layer number label
		□Anti-sit tag
		□Turnover cart (3W-9806101 series)

Product name		Anti-static collection rack
Product model		3W-9805301B1-5		3W-9805301B1-6		3W-9805301B1-7		3W-9805301B1-8		3W-9805301B1-9
Adjustment method		Wrench adjustment		Wrench adjustment		Screw adjustment		Wrench adjustment
Specification parameters	●External dimensions:	355*500*563mm		550*320*263mm		550*320*263mm		710*320*563mm		355*320*563mm
	●Base position:	A: 34mm; B: 34mm		A: 34mm; B: 34mm		A: 31mm; B: 34mm		A: 34mm; B: 34mm		A: 34mm; B: 34mm.
	●Adjustable width:	90-430mm		40-250mm		40-250mm		40-250mm		40-250mm
	●Groove depth:	3.5mm		3.5mm		3.5mm		3.5mm		3.5mm
	●Slot width:	5mm		5mm		5mm		5mm		7mm
	●Pitch:	10mm		10mm		10mm		10mm		20 mm
	●Number of slots:	50		50		50		30		25
	●Weight:	6.94Kg		3. 99Kg		3.1Kg		11.54Kg		5.2Kg
	●Carrier:	20kg		20kg		10kg		20kg		20kg
Product description		◆Baffle mechanism: spring lever
		◆Static index: 10e4-10e8
		◆Side board structure: 5 pieces of puzzle						◆Side board structure: 3 pieces of puzzle		◆Side board structure: 5 pieces of puzzle
		◆Bottom plate material: galvanized bottom plate
Temperature resistance options		口100°C 口120°C 口150°C (can enter 120°C oven)
Optional accessories		□Metal folder
		stacking screw
		□Layer number label
		□Anti-sit tag
		□Turnover cart (3W-9806101 series)

Product name		Anti-static collection rack

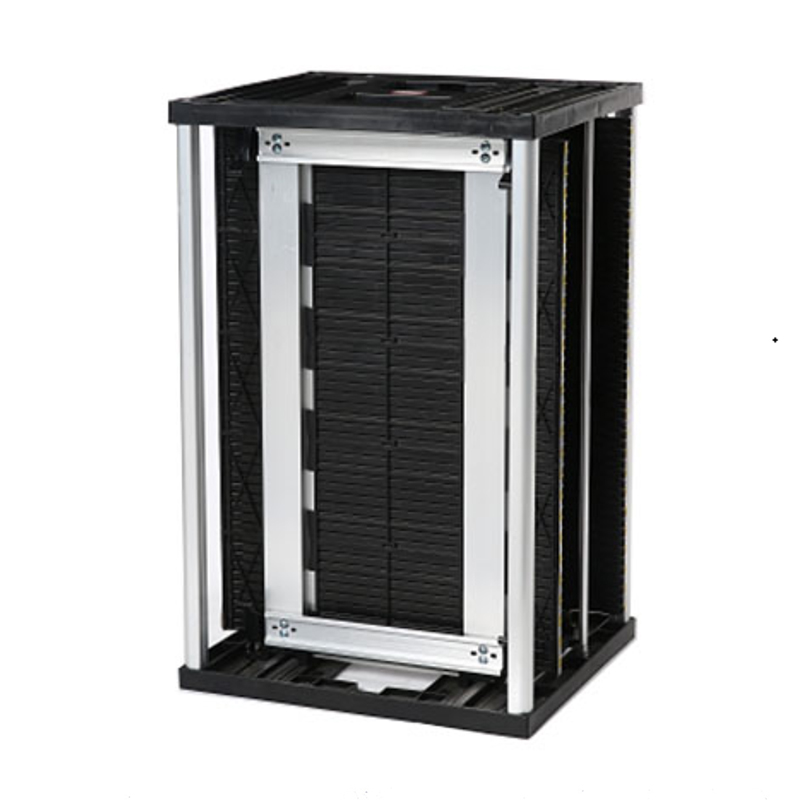

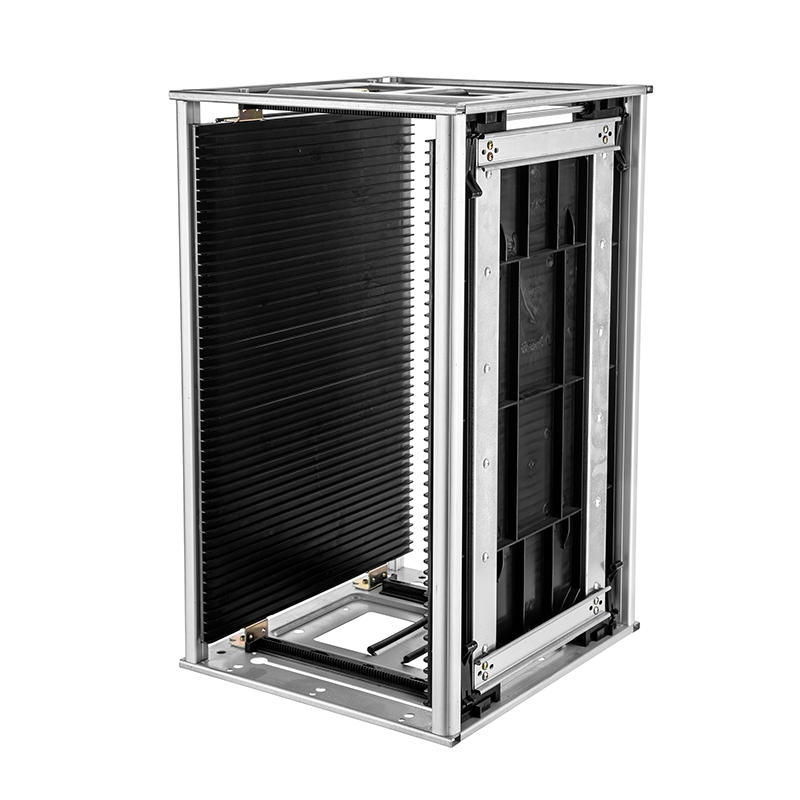

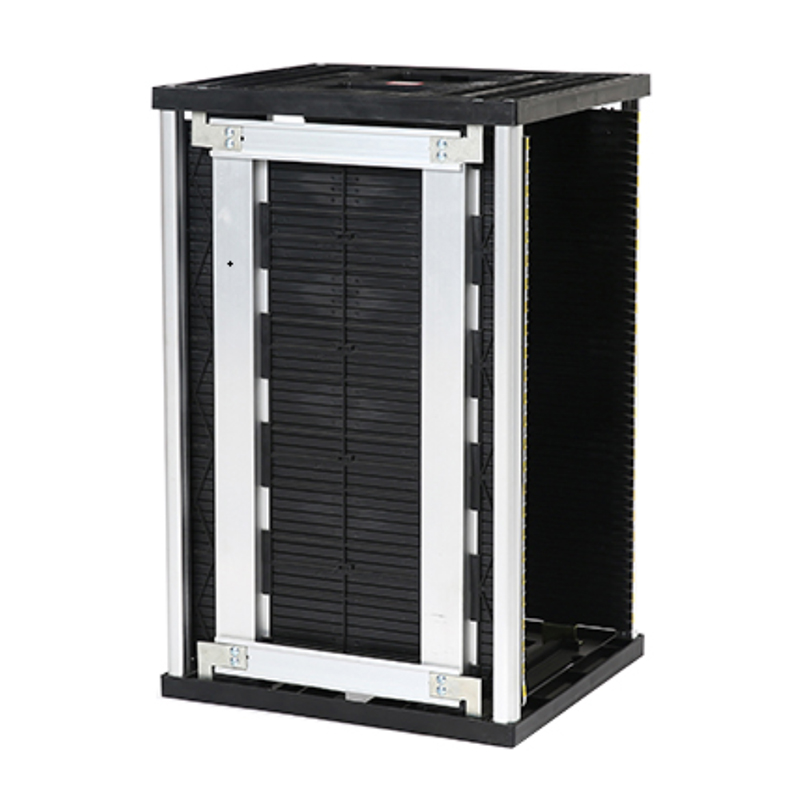

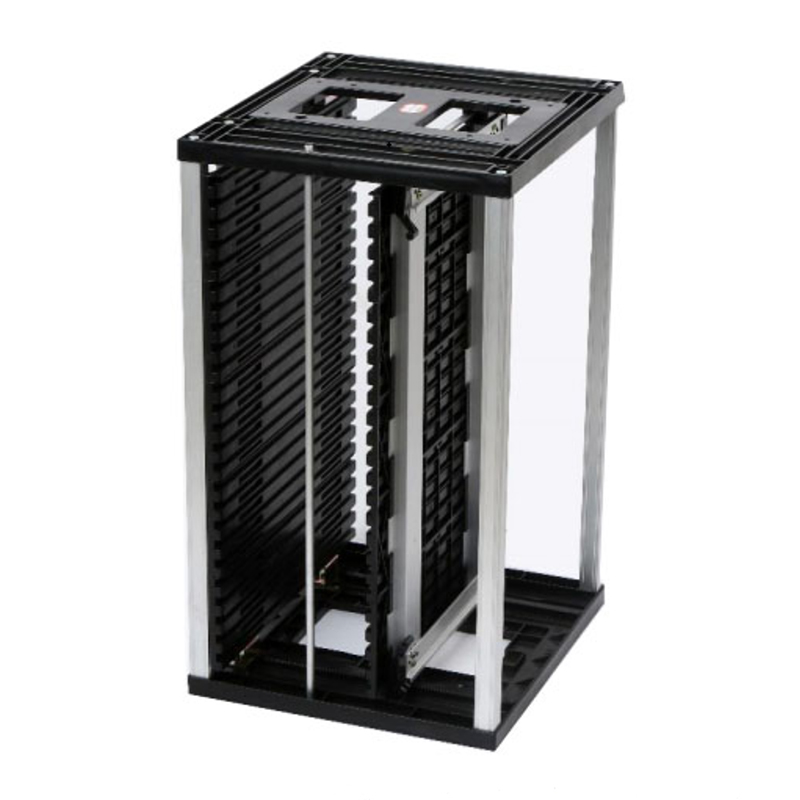

Product model		3W-9805301B1H	3W-9805301B2	3W-9805301B2-1	3W-9805301B2-3	3W-9805301B3
Adjustment method		Screw adjustment	Wrench adjustment	Screw adjustment	Wrench adjustment	Wrench adjustment
Specification parameters	●External dimensions:	355*320*563mm	355*320*563mm	355*320*563mm	355*320*563mm	355*320*563mm
	●Base position:	A: 34mm; B: 34mm	A: 34mm; B: 34mm.	A: 34mm; B: 34mm.	A: 34mm; B: 34mm	A: 34mm; B: 33mm .
	●Adjustable width:	35-250mm	40-250mm	30-250mm	40-250mm	40-250mm
	●Groove depth:	3.5mm	3.5mm	3.5mm	3.5mm	3mm
	●Slot width:	5mm	5mm	10mm	7mm	7mm
	●Pitch:	10 mm	10 mm	20 mm	20 mm	10 mm
	●Number of slots:	50	50	50	25	50
	●Weight:	5.88Kg	4.1Kg	4. 07Kg	4.3Kg	6.8Kg
	●Carrier:	20kg	20kg	20kg	20kg	20kg
Product description		◆Baffle mechanism: spring lever
		◆Static index: 10e4-10e8
		◆Side board structure: 5 pieces of puzzle
		◆Bottom plate material: galvanized bottom plate
Temperature resistance options		口200°C  (can enter 160°C oven)
Optional accessories		mouth metal folder
		stacking screw
		Layer number label
		Sit-proof label
		□Turnover cart (3W-9806101 series)			□Turnover cart (3W-9806101 series)	□Turnover cart (3W-9806101 series)

Product name		Anti-static collection rack
Product model		3W-9805301B3-1	3W-9805301B3-2	3W-9805301B3-3	3W-S9805301B4	3W-S9805301B4-1
Adjustment method		Screw adjustment	Screw adjustment	Wrench adjustment	Wrench adjustment	Screw adjustment
Specification parameters	●External dimensions:	355*320*563mm	9805301B3- 2	355*320*563mm	355*320*563mm	355*320*563mm
	●Base position:	A: 34mm; B: 33mm .	A: 34mm; B: 33mm .	A: 31mm; B: 33mm	A: 34 mmB: 33 mm	A: 34 mmB: 33 mm
	●Adjustable width:	30-250mm	90-435mm	40-250mm	40-250mm	40-250mm
	●Groove depth:	3mm	3mm	3mm	3mm	3mm
	●Slot width:	7mm	7mm	7mm	7mm	7mm
	●Pitch:	10 mm	10 mm	10 mm	10 mm	10 mm
	●Number of slots:	50	50	50	50	50
	●Weight:	6.8Kg		6. 8kg	5.8kg	5.8kg
	●Carrier:	20kg	20kg	20kg	20kg	20kg
Product description		◆Baffle mechanism: spring lever
		◆Static index: 10e4-10e8
		◆Side board structure: whole board
		◆Bottom plate material: metal bottom plate
Temperature resistance options		口100°C 口120°C 口150°C (can enter 120C oven)
Optional accessories		□Metal folder
		stacking screw
		□Layer number label			□Anti-sit tag
		□Anti-sit tag			□Turnover cart (3W-9806101 series)
		□Turnover cart (3W-9806101 series)

Product name		Anti-static collection rack
Product model		3W-9805301Q	3W-9805301R	3W-9805301R-1	3W-9805301R-2	3W-9805301R-3
Adjustment method		Quick adjustment	Screw adjustment	Screw adjustment	Screw adjustment	Screw adjustment
Specification parameters	●External dimensions:	355*320*563 mm	355*320*565 mm	355*320*565 mm	355*320*565 mm	355*320*568 mm
	●Base position:	A: 34 mmB: 34 mm	A: 34mm; B: 34mm	A: 34mm; B: 34mm	A: 34mm; B: 34mm	A: 33mm; B: 33.5mm
	●Adjustable width:	20-250mm	50-240mm	50-240mm	50-240mm	50-230mm
	●Groove depth:	3.5mm	4mm	4mm	4mm	4mm
	●Slot width:	5 mm	7mm	7mm	7mm	7mm
	●Pitch:	10 mm	10mm	10mm	10mm	10mm
	●Number of slots:	50	50	50	50	50
	●Weight:	5.6 kg	7.28Kg	7.28Kg	7.28Kg	4.52Kg
	●Carrier:	20 kg				12kg
Product description		◆Baffle mechanism: spring stop lever	◆Baffle mechanism: spring lever
		◆Static index: 10e4-10e8
		◆Side board structure: 5-piece imposition	◆Side board structure: whole board	◆Side board structure: whole board	◆Side board structure: whole board	◆Side board structure: whole board
		◆Bottom plate material: metal plate	◆Bottom plate material: plastic board	◆Bottom plate material: plastic board	◆Bottom plate material: plastic board	◆Bottom plate material: metal plate
Temperature resistance options		□100℃ □120℃ □150 ℃	口125°C
Optional accessories		□Metal folder	□Metal folder
		□Stacking screws	stacking screw
		□Layer number label	□Layer number label
		□Anti-sit tag	□Anti-sit tag
		□Turnover cart (3W-9806101 series)	□Turnover cart (3W-9806101 series)

*Temperature resistance refers to the maximum temperature that the collection rack can withstand the PCB board
