    Product Details

    Product Introduction

    Core Technology for High-Efficiency Electrostatic Prevention:
    This anti-static tray is made of high-quality anti-static materials and processed through special techniques, boasting excellent electrostatic dissipation performance. It can rapidly and effectively release the static charges accumulated on the surface of objects, preventing the accumulation of charges and the formation of high potential differences. When used with customized knife cards, it not only enables precise partition and positioning of electronic components but also further enhances the electrostatic protection effect, avoiding component damage caused by electrostatic dust adsorption or electrostatic discharge.​
    Remarkable Advantages for Cost Reduction and Efficiency Improvement:
    In the production process of electronic products, static electricity is one of the major hidden dangers causing component damage. By using this anti-static tray, the damage rate of electronic products during production, handling, and transportation can be significantly reduced, effectively controlling production costs. Meanwhile, its excellent anti-static performance ensures the stability of product quality, helping to increase the yield rate and create higher profit margins for enterprises.​
    Wide Application, Suitable for Diverse Scenarios:
    The product is mainly used for static electricity elimination and is an ideal choice for the handling, loading, packaging, storage, and transportation of electronic devices and products during the production process. Whether it's the precise transfer of semiconductor chips and integrated circuit boards or the long-term storage of sensitive electronic components, it can provide reliable electrostatic protection. In industries such as electronics manufacturing, communication equipment, and aerospace, this anti-static tray, also known as an anti-static component box, is an excellent option for turnover containers of precision electronic components, fully meeting the stringent requirements for electrostatic protection and component management in various scenarios.


    Technical Specification

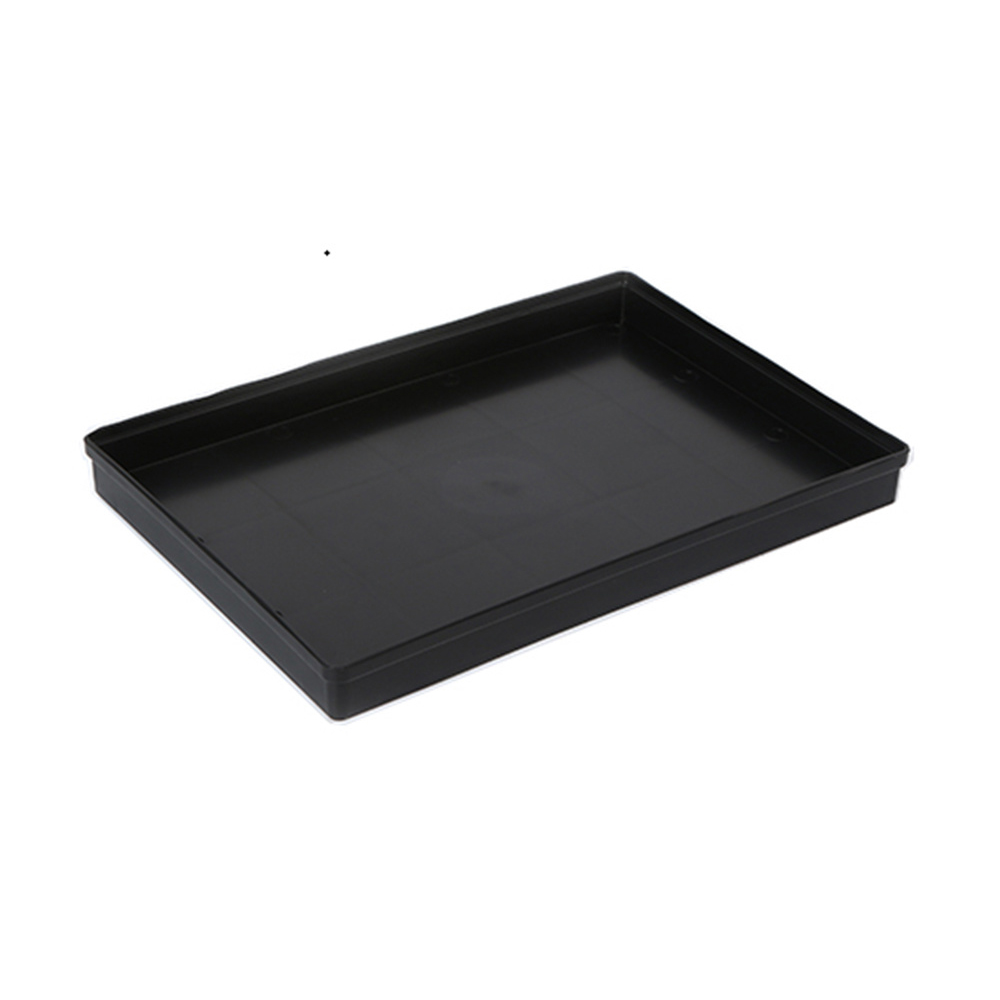

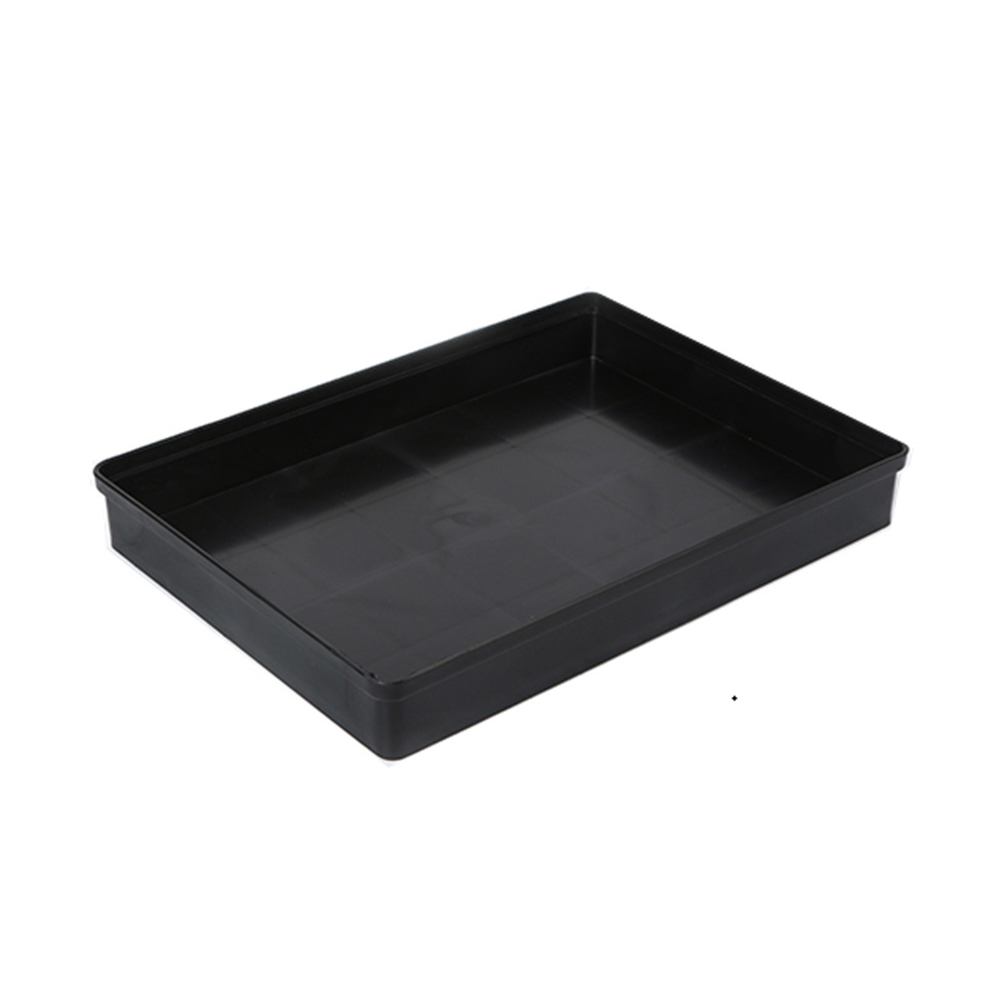

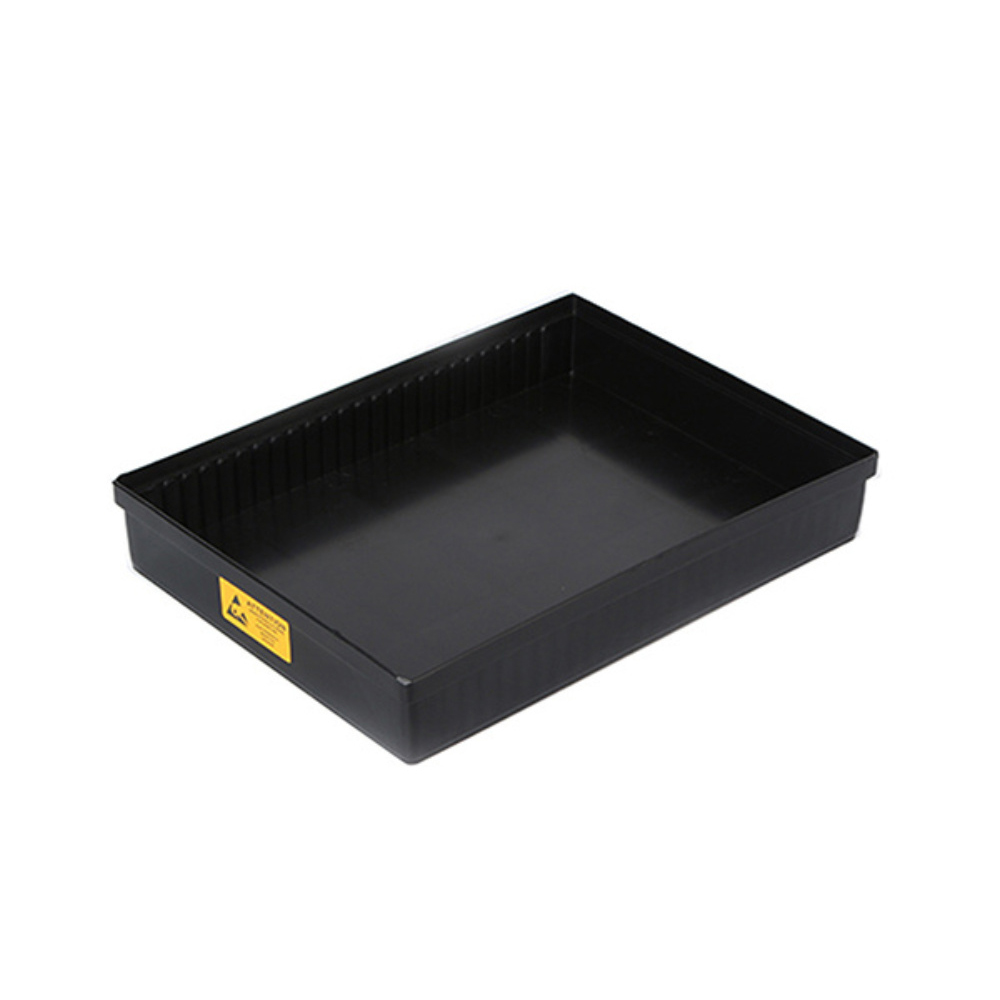

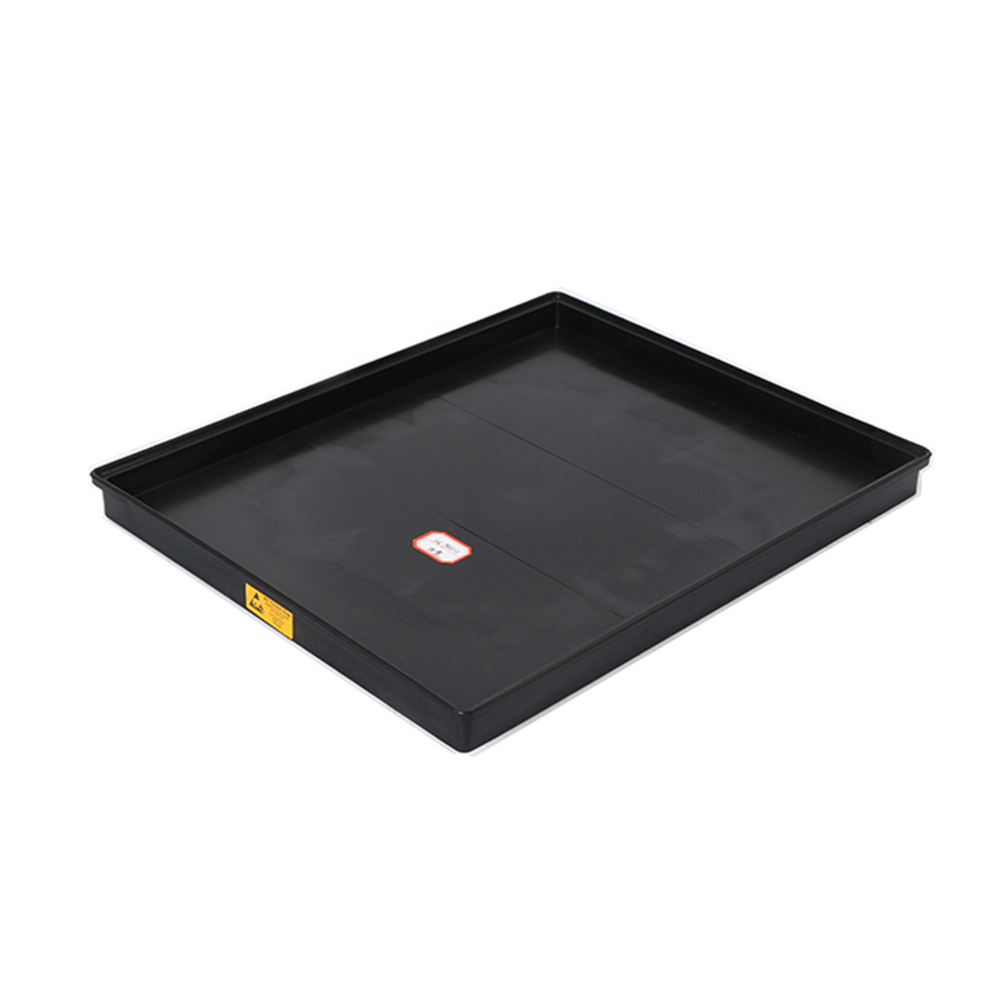

    Product name Anti-static tray
    Product model 3W-9805108 3W-9805109 3W-9805109-2 3W-9805110 3W-9805111
    08 小图.jpg 09 小图.jpg   10 小图.jpg 11小图.jpg
    Specification parameters ●External dimensions: 225* 165*37mm 225* 165*37mm 225* 165*37mm 285* 195*26mm 375*310*28mm
    ●Inner size: 215* 155*32mm  215* 155*32mm  215* 155*32mm  275* 185*23mm  360*293*22mm
    ●Wall: 2mm 2mm 2mm 3mm 3.5mm
    ●Bottom wall: 2mm 2mm 2mm 3mm 3mm
    ●Weight: 0.18Kg 0.18Kg 0.18Kg 0.26Kg  0. 51Kg
    Product description ◆Slots on the long side
    Static index: 10e4-10e8
    Temperature resistance customization   □120°C   □150°C
    Color customization □       □      □   □other
    □Anti-static label □Anti-static label
    □Anti-static partition (34mm height) mouth screen printing mouth screen printing
    □Silk screen printing \ \
    Product name Anti-static tray
    Product model 3W-9805112 3W-9805113 3W-9805113-2 3W-9805114 3W-9805115
    12 小图.jpg 13 小图.jpg 13.2 小图.jpg 3W-9805114 小图.jpg 3W-9805115 小图.jpg
    Specification parameters ●External dimensions: 457*312*39mm 450*295*70mm 450*295*41mm 375*275*41mm 530*368*42mm
    ●Inner size: 417*292*30mm  435*280*62mm 430*278*35mm 360*260*35mm 510*350*34mm
    ●Wall: 2mm 2.5mm 3mm 2.5mm 2.5mm
    ●Bottom wall: 3mm 3mm 2.5mm 2mm 3mm
    ●Weight: 0.73Kg  1.08Kg  0.72Kg 0.51Kg  1.22Kg
    Product description ◆The grid is detachable, divided into 70 grids ◆Static Index: 10e4-10e8
    ◆Static index: 10e4-10e8
    Temperature resistance customization □120°C              □150°C
    Color customization □       □      □   □other
    Optional accessories □Anti-static label Port anti-static label
    □Silk screen printing Port anti-static partition Silk screen printing Silk screen printing □ Anti-static partition
    \ Screen printing of mouth \ \ mouth screen printing
    Product name Anti-static tray
    Product model 3W-9805115-2 3W-9805116 3W-9805117 3W-9805117-2 3W-9805118
    3W-9805115-2 小图.jpg 3W-9805116 小图.jpg 3W-9805117 小图.jpg 3W-9805117-2 小图.jpg 3W-9805118 小图.jpg
    Specification parameters ●External dimensions: 530*370*56mm 497 *398*41mm 592*545*37mm 550*550*33mm 495*495*32mm
    ●Inner size: 510*350*50mm 462*363*34mm 578*535*31mm 523*523*30mm 470*470*30mm
    ●Wall: 3mm 3mm 4.5mm 3mm 3mm
    ●Bottom wall: 2mm 3mm 2.5mm 3mm 3mm
    ●Weight: 1.07Kg  0.91Kg  1.92Kg 1.45Kg 1.6Kg
    Product description ◆Inner concave surface height 35mm ◆Static index: 10e4-10e8 ◆Static index: 10e4-10e8 ◆Static index: 10e4-10e8 ◆Static index: 10e4-10e8
    ◆Static index: 10e4-10e8 ◆High temperature resistant 160°C
    Temperature resistance customization □120°C
    Color customization □       □      □   □other
    Optional accessories \ Port anti-static label
    Anti-static label □Anti-static partition Silk screen printing Silk screen printing Silk screen printing
    □Anti-static partition mouth screen printing
    Silk screen printing
    Product name Anti-static tray
    Product model 3W-9805119 3W-9805120 3W-9805125 3W-9805126 3W-9805134
    3W-9805119 小图.jpg 3W-9805120 小图.jpg 3W-9805125 小图.jpg 3W-9805126 小图.jpg 3W-9805134 小图.jpg
    Specification parameters ●External dimensions: 550*453*47mm 340*123*54mm 356* 286*26 mm 495*380*35mm 555*357*52mm
    ●Inner size: 513*413*45mm  295*112*48mm 345*275*22 mm 425*3 15*30mm 540*340*47mm
    ●Wall: 3mm 3.5mm 3mm 2.5mm 3mm
    ●Bottom wall: 3mm 2.5mm 3mm 3mm 4mm
    ●Weight: 1.58Kg 0.34Kg 0.48 kg 0.68Kg 1.15kg
    Product description ◆Static index: 10e4-10e8
    Temperature resistance customization □ 120℃
    Color customization □       □      □   □other
    Optional accessories Port anti-static label
    Silk screen printing Port anti-static partition Silk screen printing Silk screen printing Port anti-static partition
    \ mouth screen printing \ \ Screen printing of mouth

    *Temperature resistance refers to the maximum temperature that the collection rack can withstand the PCB board
